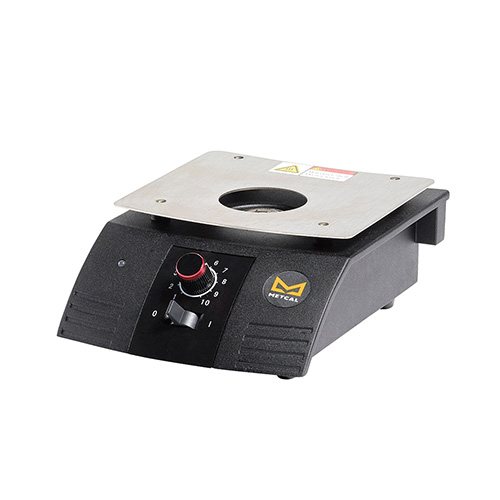

METCAL- Focus Preheater PCT-100-21
Description
The PCT-100 Focus Pre-heater targets heat for improved speed and efficiency for high thermal demand applications, including lead-free. Used for SMT and through-hole hand processes, the PCT-100 uses convection air heating to heat a PCB first, for better soldering, improved process control and increased productivity. The PCT-100 Focus Pre-heater adds heat volume, without turning up the temperature, to perform assembly tasks at the appropriate peak temperature without distorting the board.
Specifications
| InputVoltage: | PCT-100-11, 110 VAC, 60 Hz |
| InputVoltage: | PCT-100-21, 240 VAC, 50 Hz |
| Rated Power: | 450 W |
| Surce Temperature: | Up to 300 °C (572 °F) |
| Heating Method: | Convection |
| Airflow: | 280 l/min ( 9.88 cfm) |
| Noise Level: | Low |
| Surface Resistivity: | 106 - 1011 Ohm |
| Size W x D x H: | 155 x 205 x 65 mm (6.1" x 8" x 2.6") |
| Weight: | 1.6 kg (3.5 lb) |
| Certification/Marking: | cTUVus, CE |
| Ambient Operating Temperature: | 0 - 40 °C (32 - 104 °F) |
| Storage Temperature: | -10 - 60 °C (14 - 140 °F) |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 Year |
Features and Benefits
- Accelerates and enhances the lead-free SMT & through-hole rework process
- Temperature ramps up quickly, maximizing productivity
- Adjustable knob controls the required temperature to below 300°C
- Controlled cool-down eliminates thermal shock to PCB and components
- Thermocouple feedback temperature control regulates output temperature
- System safety feature automatically shuts off heating when fan is stopped
- ESD safe
Product Comprise of
- Focus Pre-heater
- Power Cord
