MX-H1-AV Advanced Hand-Piece for MX System

Description

Advanced Hand-Piece for the MX-5000 and MX-5200 Series Systems.

Specifications

Input Line Voltage:	100 - 240 VAC, grounded circuit, 50/60 Hz
Rated Power Consumption:	70 W max.
Output Power:	Variable, 40 W max.*
Output Frequency:	13.56 MHz
Heating Method:	Induction, smartHeatR
Connections:	Dual Port, switchable
Power Supply Dim. W x D x H:	121 x 121 x 220 mm (4.8" x 4.8" x 8.7")
Power Supply Weight:	2.65 kg (5.8 lb)
Certiﬁcation / Marking:	cTUVus, CE
Tip-to- Ground Potential:	< 2 mV
Tip-to-Ground Resistance:	< 2 Ohm
Ground Detection:	Permanent
Surface Resistivity:	10⁵ - 10⁹ Ohm
Idle Temperature Stability:	1.1 °C ( 2 °F) in still air
Tip Temperature Accuracy:	Meets or exceeds IPC J-STD-001 Standard
Power Cord Length:	183 cm, 18/3 SJT
Warranty:	4 years
Ambient Operating Temp:	10 - 40 °C (50 - 104 °F)
Max. Enclosure Temp:	55 °C (131 °F)

Solder-Pen Specification	Solder-Pen
Hand-Piece Cable Length:	183 cm (72”), burn proof, ESD-safe
Hand-Piece - RF Connector:	F-type power connector
Desolder-Pen Specificaton:	MX-DS1
Hand-Piece Cable Length:	183 cm (72”), burn proof, ESD-safe
Hand-Piece - RF Connector:	F-type power connector
Air Hose:	ESD-save
Tweezer Specification:	MX-PTZ
Hand-Piece Cable Length:	183 cm (72”), burn proof, ESD-safe
Hand-Piece - RF Connector:	F-type power connector
Desolder Workstand:	MX-W5DS

Features and Benefits

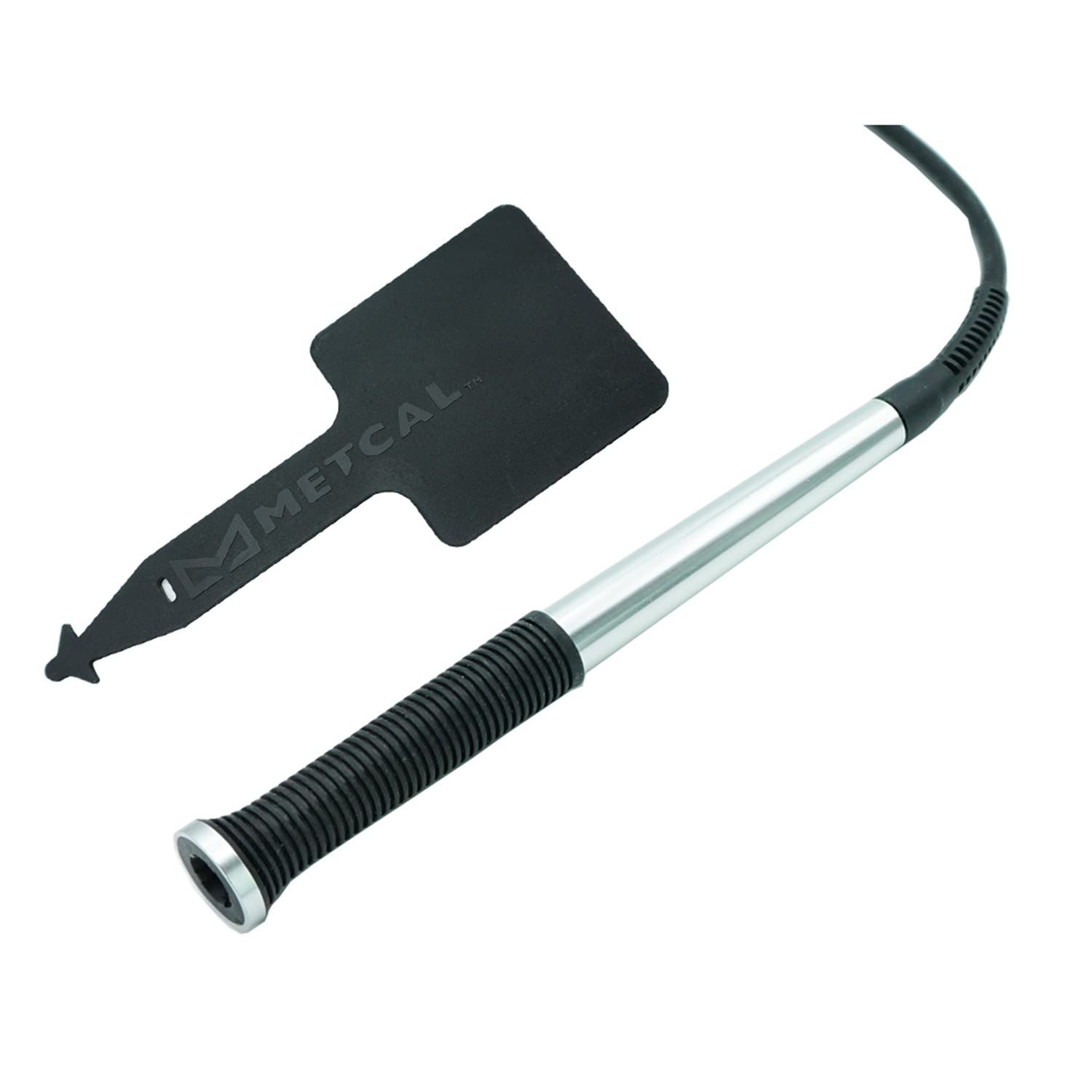

General purpose tool for single task soldering, touch-up soldering, Surface Mount Device (SMD) rework, and pad clean-up.
Ergonomic and cool-to-the-touch feel
Cartridge Removal Pad included
Compatible with STTC and SMTC cartridges
Compatible with MX-W1AV TipSaver workstand
Hand-Piece Cable Length: 178cm/70"

Products of the same type

Power Supply:

Input Line Voltage:	100 - 240 VAC
Input Line Frequency:	50/60 HZ
Power Consumption:	65 Watts maximum
Output Power:	60 Watts maximum
Output Frequency:	450 KHz
Dimensions (approx.) W x D x H:	90mm (3.5") x 200mm (8") x 152.5mm (6")
Weight:	2.3kg (5.05 lbs)
Idle Tip Temperature Stability:	+/- 1.1°C (2°F) in still air
Ambient Operating Temperature:	10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature:	55°C (131°F)
Tip to ground Potential:	<2 Ohms
Surface resistivity:	10⁵ – 10⁹ Ohm
Approvals cTUVus	CE
Hand-piece Cable Length:	L=122cm (48"), burn resistant, ESD safe

Power Cord (3-wire):	183 cm 18/3 SJT
Solder Hand-piece cable length:	152 cm (60"), burn proof, ESD safe
Hand piece connector:	8 pin power connector
